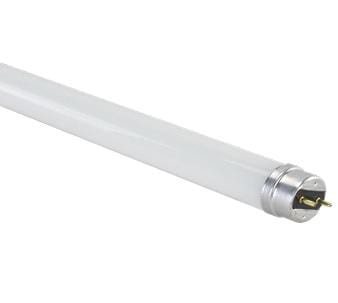

[Clearance] MEGAMAN LT200160/mb-12v02-(High Output) LED Tube T8 4FT 16W x6Pcs
[Clearance] MEGAMAN LT200160/mb-12v02-(High Output) LED Tube T8 4FT 16W x6Pcs
SKU SKU:4892657099102
สต็อกสินค้าเหลือน้อย: เหลือ 1 ชิ้น
ไม่สามารถโหลดความพร้อมในการรับสินค้าด้วยตนเองได้
แบ่งปัน
LED tube lights are essential lighting products which provide instant full light and does not take time to heat up. MEGAMAN LT200160/mb-12v02-(HIGH OUTPUT) LED TUBE T8 4FT 16W is a super bright LED Tube which will be a good fit in your living room, bedroom, study room or drawing room.
| Engineering Specifications of Energy Saving LED T8 Tube | ||||
| Model No. | Rating | Cap | Color Temp. | Life Time |
| LT200160/mb-12v02 | 230V 16W | G13 | 4000K | 50,000 |
|
General Data |
Rated value |
|
|
|
Rated Voltage [V] |
220-240 |
||
|
Surge Voltage [V] |
1000 |
||
|
Frequency [Hz] |
50/60 |
||
|
Lamp Wattage [W] |
16.0 |
||
|
Lamp Current [mA] |
100 |
||
|
Power Factor |
>0.9 |
||
|
Dimmable[N/Y] |
N |
||
|
Outdoor Use[N/Y] |
N |
||
|
DC 230V Input [N/Y] |
N |
||
|
Operating Temp [℃] |
-30℃ to +45℃ |
||
|
Light Data [Initial] |
|
||
|
Lux distribution [lux] |
t.b.c |
||
|
Max.luminous Intensity[cd] |
N/A |
||
|
Beam Angle[°] |
n/a |
||
|
Total lumen[lm] |
2200 |
2400 |
2400 |
|
90° Useful Lumen[lm] |
N/A |
|
|
|
120° Useful Lumen[lm] |
N/A |
|
|
|
Color Temperature [K] |
3000 |
4000 |
6500 |
|
SDCM |
≤6 |
≤6 |
≤6 |
|
Color Rendering Index |
80 |
80 |
80 |
|
Energy class |
A++ |
A++ |
A++ |
|
Weighted energy consumption |
16 |
|
|
|
Equivalence Wattage(W) |
36 |
|
|
|
Lamp Efficacy |
135 |
150 |
150 |
|
LLMF |
0.7 |
|
|
|
Warm Up Time 60%[sec] |
Instant full light |
|
|
|
Starting Time[sec] |
<0.5 |
|
|
|
Warning for lamp >90 deg |
N |
|
|
|
Flicker percentage @100Hz [%] |
<3 |
|
|
|
Life Time [at 230V, lot size min. 20 units] |
|
|
|
|
Life Time at 230V, 25℃ [h] |
50,000 |
|
|
|
Switching cycle up to 50% failure (30s on, 30s off) [cycles] |
100,000 |
|
|
|
Geometrical Data |
|
|
|
|
Diameter (R) [mm] |
28±2 |
|
|
|
Diagonal(D)[mm] |
N/A |
|
|
|
Width(W)[mm] |
N/A |
|
|
|
Height(H)[mm] |
N/A |
|
|
|
Length (L) [mm] |
1212±2 |
|
|
|
Weight [g] |
186±5% |
|
|
|
Base |
G13 |
|
|
|
RoHS |
Compliant |
|
|
|
Color of plastic component |
n/a |
|
|
|
Cover finish Flammability of plastic component |
white V1 |
|
|
|
Technical Data |
|
|
|
|
SafetyRequirement according to EN 62776:2015 according to EN 62493:2015 Photobiological Safety according to EN62471:2008 PerformanceRequirement according to ERP 1194-2012
General Data EMC Requirement according to IEC 62612:2009 according toEN 55015:2013+A1:2015 according toEN 61547:2009 according toIEC/EN 61000-3-2:2014 according toIEC/EN 61000-3-3:2013
Approvals CE Lamp cap twist safe[Nm] 1 |
|||
