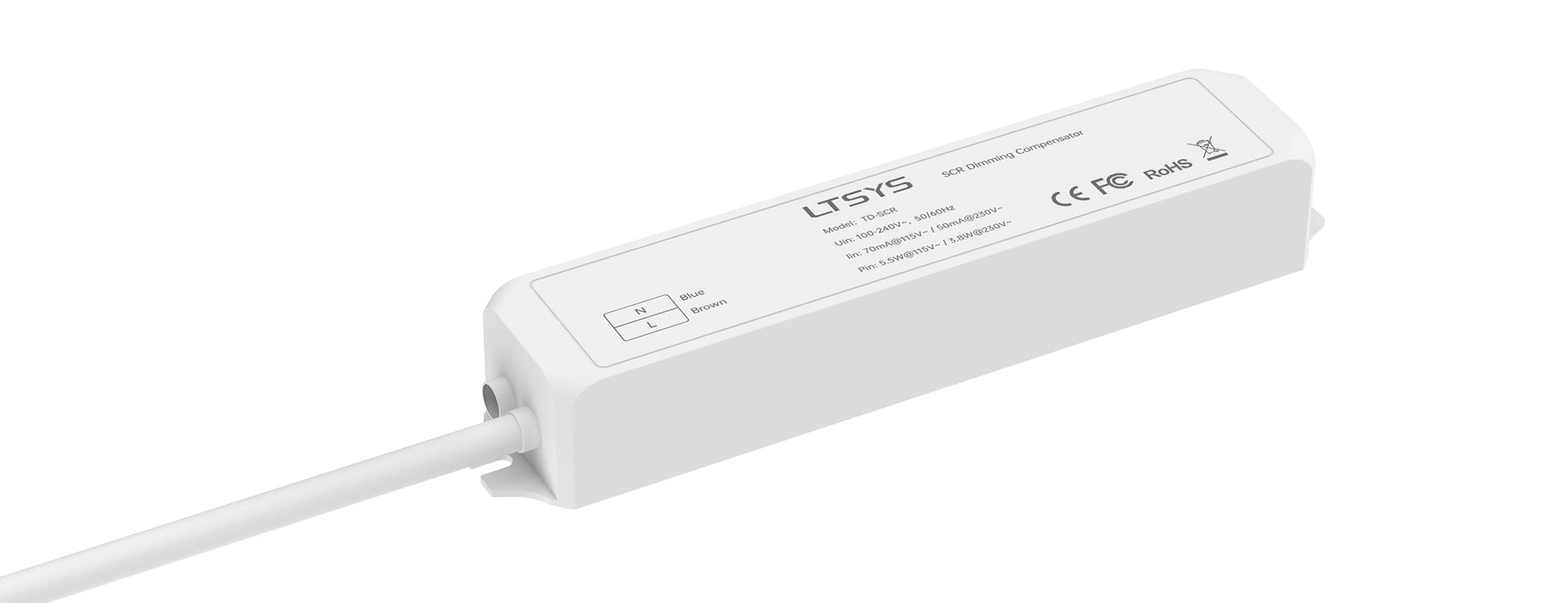

[China] LTECH TD-SCR Thyristor Phase-Cut Load Compensator x 20Pcs

** Ships from China, Lead Time 2-3 Weeks**

Description:

TD-SCR uses the digital control technology to solve the flickering or non-shutdown problems of LED lamps during leading edge and trailing edge dimming. LED lamps are capacitive loads and often cause problems at the lowest dimming level due to insufficient holding current, leading to impulse-type flickering or failure to turn off LED lamps. TD-SCR ensures stable performance of IED lamps by maintaining the minimum output current when the conduction angle is smalest. It is ideal forload compensation in phase cut circuits.

Features:

Input Voltage:  100-240Vac
Frequency Range:  50/60Hz
Input Current:  70mA@115Vac / 50mA@230Vac
Input Power:  5.5W@115Vac / 3.8W@230Vac
Inrush Current:  10A for cold start (tested at 50% Ipeak, twidth=320μs) @230Vac
Operating Temperature:  Ta: -30 ~ 55°C; Tc: 90°C
Operating Humidity:  20 ~ 95%RH, no condensation
Storage Temperature/Humidity:  -40~80°C / 10~95%RH
Temperature Coefficient:  ±0.03%/°C (-20~45°C)
Vibration Resistance:  10-500Hz, 2G, 12 minutes per cycle, 72 minutes each for X, Y, Z axes

Warranty: 5 Years

Certificate: CE,RoHS
