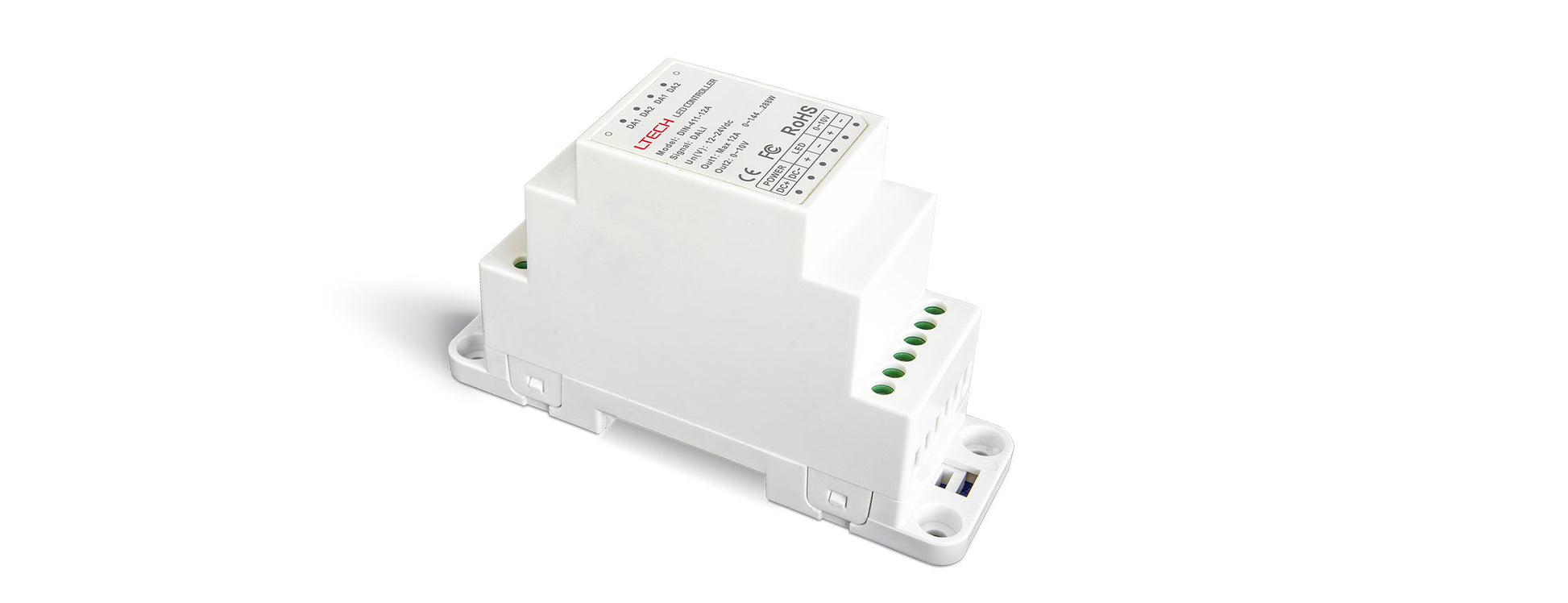

[China] LTECH DIN-411-12A Constant Voltage DALI Dimming Driver Din Rail x 8PCs

[China] LTECH DIN-411-12A Constant Voltage DALI Dimming Driver Din Rail x 8PCs

DIN-411-12A

URL Datasheet 2

$ 413.00 SGD
$ 451.00 SGD $ 413.00 SGD
ลดราคา ขายหมดแล้ว
ค่าจัดส่งที่คำนวณในขั้นตอนการชำระเงิน

Request For Quote

Delivery

Singapore

1-3 work days ( 90% of Shipments)

For items that are stocked outside Singapore, it takes 7 - 14 work days.

International

7-14 work days.

Pick FEDEX at checkout for reliable and Fast Deliveries.

Taxes

Singapore

GST Not Applicable - Prices displayed are final prices.

International

As per importering country's Duties and taxes. To be paid to Carrier or Customs Dept. Importer is responsible for Import Duty and Taxes.

แผ่นข้อมูล

cs@delight.com.sg
Tel: +65 6429 8402
Whatsapp: +65 8900 0895

We admit ! For Technical Clarifications, our AI BOT is Quicker than us. Try it !

** Ships From China, Lead Time 2-3 Weeks**

Product Features:

Dimming interface: DALI
PWM digital dimming, standard DALI logarithmic dimming curve.
Dimming range: 0~100%, LED start at 0.1% possible.
Max. current output: 12A.
0-10V output, DALI system compatible with 0-10V.
Short circuit / Over-heat / Non load protection.
Full protective plastic housing.
DALI bus standard: IEC62386.
Suitable for indoor environments.

Main Characteristics:

  • Dimming Interface: DALI (IEC62386)
  • Input Voltage: 12~24Vdc
  • Output Voltage: 12~24Vdc
  • Output: 12A×1CH + 0-10V×1CH
  • Max. Output Power: 0-144W...288W
  • Dimming Range: 0~100%, LED start at 0.1% possible
  • Protection: Short circuit / Over-heat / Non-load
  • Mounting: DIN-Rail or Screw
  • Working Temperature: -30℃~55℃
  • Product Size: L112×W35×H67(mm)
  • Package Size: L114×W37×H70(mm)
  • Weight(G.W.): 120g
