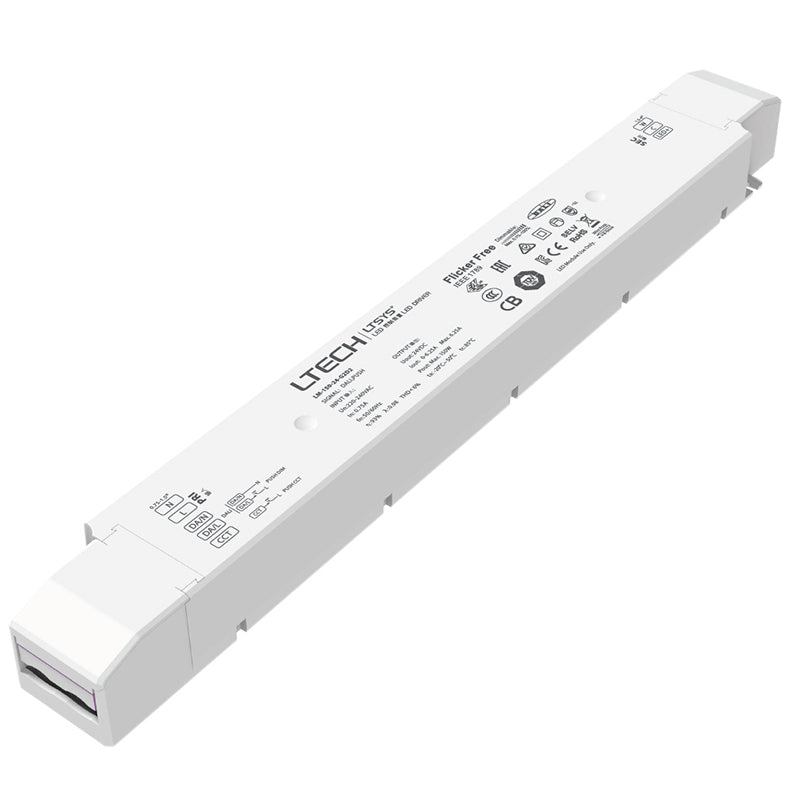

[China] LTECH DALI Constant Voltage 24V Tunable White Rubycon Driver x4Pcs

[China] LTECH DALI Constant Voltage 24V Tunable White Rubycon Driver x4Pcs

LM-150-24-G2D2

URL Datasheet

URL Datasheet 2

$ 554.00 SGD
$ 604.00 SGD $ 554.00 SGD
ลดราคา ขายหมดแล้ว
ค่าจัดส่งที่คำนวณในขั้นตอนการชำระเงิน
Power

Request For Quote

Delivery

Singapore

1-3 work days ( 90% of Shipments)

For items that are stocked outside Singapore, it takes 7 - 14 work days.

International

7-14 work days.

Pick FEDEX at checkout for reliable and Fast Deliveries.

Taxes

Singapore

GST Not Applicable - Prices displayed are final prices.

International

As per importering country's Duties and taxes. To be paid to Carrier or Customs Dept. Importer is responsible for Import Duty and Taxes.

แผ่นข้อมูล

cs@delight.com.sg
Tel: +65 6429 8402
Whatsapp: +65 8900 0895

We admit ! For Technical Clarifications, our AI BOT is Quicker than us. Try it !

***Ships from China - 2 to 3 weeks lead time***

Description:

Models:

LM-150-24-G2D2: DALI CV Tunable White  Driver:

  • Dimming interface: DALI DT8, Push DIM/CCT
  • 2 independently SELV constant voltage output channels.
  • DALI DT8, DIM and color temperature adjusting driver.
  • Constant power design, adjust different color temperature to keep the same brightness.
  • Dimming range from 0-100%, LED start at 0.1% possible.
  • Color temperature adjusting range: 2500-6000K
  • 0~100% flicker-free, High frequency exemption level.
  • High Efficicient driver: efficiency 93%, PF>0.98, THD<6%.
  • In line with the EU energy efficiency ERP directive, standby power consumption < 0.5W
  • Innovative thermal management technology, intelligent power life protection.
  • Over-heat / Over voltage / Over load / Short circuit protection, recover automatically.
  • Fully-protected plastic housing with design of dismountable end cover.
  • Suitable for internal lights application for Ⅰ/Ⅱ/Ⅲ
  • 5 years warranty (Rubycon capacitor).

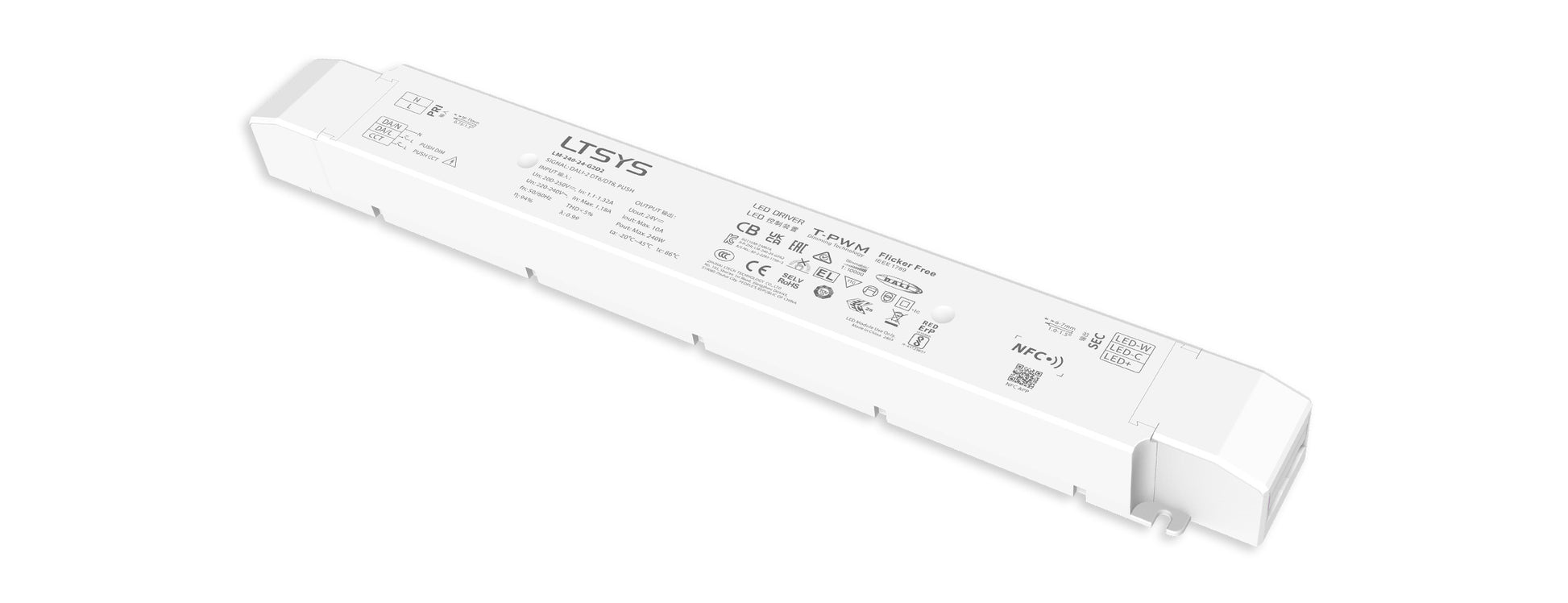

LM-240-24-G2D2: DALI CV Tunable White Driver NFC Full Instruction Programmable Rubycon

  • The housing is made from V0 flame retardant PC materials
    from SAMSUNG/COVESTRO.
  • The clamshell design and screwless type for strain-relief. The design of dismountable end cap allows you to adjust the length of housing depending on your needs.
  • Change the DALI address, PWM frequency and other parameters via the APP.
  • Set the DALI group and scene in the advanced DALI template
    via the APP.
  • Adopt constant power design that can adjust different color temperature while brightness remains the same.
  • With soft-on and fade-in dimming function, enhancing your visual comfort.
  • The whole dimming process is flicker-free with high frequency exemption level.
  • T-PWM™ super deep dimming technology, 0.01% dimming depth.
  • Comply with the EU’s ErP Directive, networked standby<0.5W.
  • Overheat, over voltage, overload, short circuit protection and automatic recovery.
  • Normal service life can reach 100,000 hours.
  • 5-year warranty (Rubycon capacitor).



ดูรายละเอียดทั้งหมด
