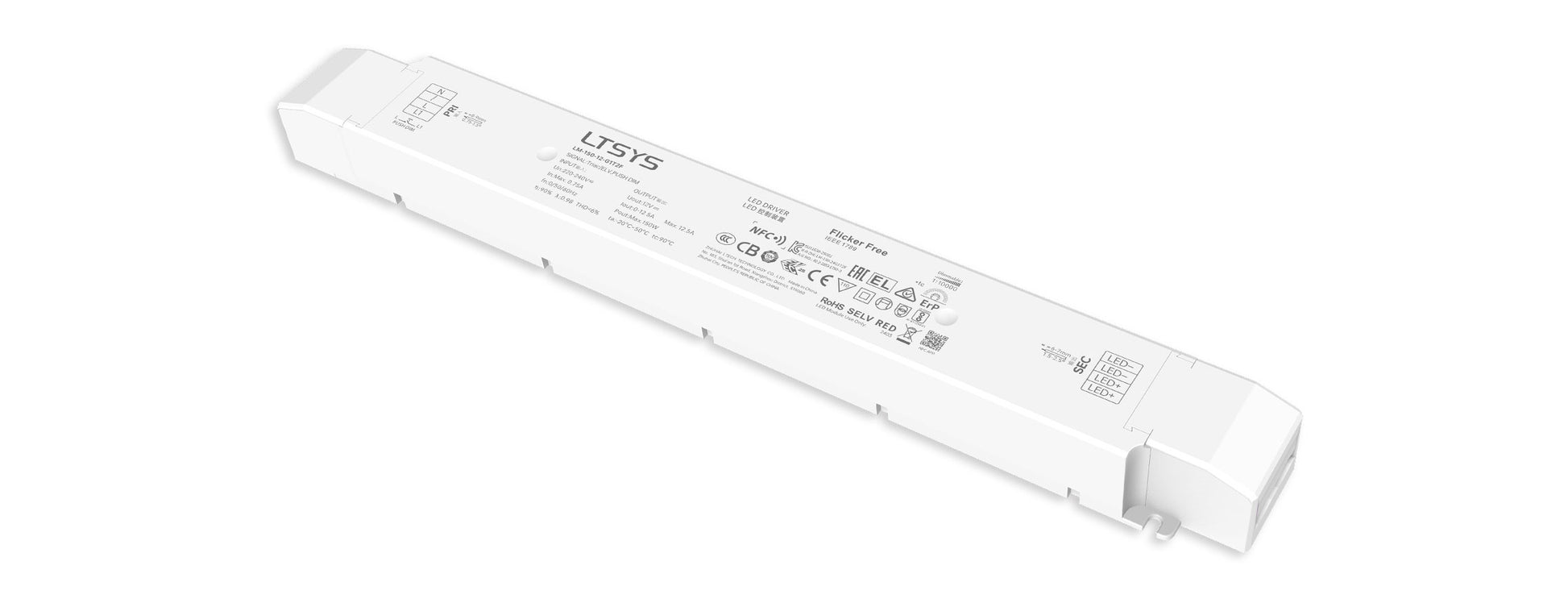

[China] LTECH 150W NFC Programmable Constant Voltage Triac Dimmable Rubycon LED Driverx 4Pcs

[China] LTECH 150W NFC Programmable Constant Voltage Triac Dimmable Rubycon LED Driverx 4Pcs

LM-150-12-G1T2F

URL Datasheet 2

$ 442.00 SGD
$ 482.00 SGD $ 442.00 SGD
ลดราคา ขายหมดแล้ว
ค่าจัดส่งที่คำนวณในขั้นตอนการชำระเงิน
Voltage

Request For Quote

Delivery

Singapore

1-3 work days ( 90% of Shipments)

For items that are stocked outside Singapore, it takes 7 - 14 work days.

International

7-14 work days.

Pick FEDEX at checkout for reliable and Fast Deliveries.

Taxes

Singapore

GST Not Applicable - Prices displayed are final prices.

International

As per importering country's Duties and taxes. To be paid to Carrier or Customs Dept. Importer is responsible for Import Duty and Taxes.

แผ่นข้อมูล

cs@delight.com.sg
Tel: +65 6429 8402
Whatsapp: +65 8900 0895

We admit ! For Technical Clarifications, our AI BOT is Quicker than us. Try it !

***Ships from China - 2 to 3 weeks lead time***
Technical Details:

Product Details:

Product Features:

  • The housing is made from V0 flame retardant PC materials that SAMSUNG/COVESTRO uses.
  • The clamshell design and screwless type for strain-relief. The design of dismountable end cap allows you to adjust the length of housing depending on your needs.
  • With soft-on and fade-in dimming function, enhancing your visual comfort.
  • Parameters such as lighting voltage, PWM frequency and power transition time can be changed through the mobile APP.The drive data interaction function is realized.
  • High frequency exemption level.
  • Dimming from 0~100%, down to 0.1%.
  • Support Leading edge lTriac), Trailing edge (ELV) and Push DIM.
  • Innovative thermal management technology intelligently protects the life of the LED driver.
  • Overheat, over voltage ,overload, short circuit protection and automatic recovery.
  • Suitable for Classl/l/lll indoor light fixtures.
  • Up to 50,000-hour life time.
  • 5-year warranty (Rubycon capacitor).

LM-150-12-G1T2F

Rubycon capacitor
Dimming Interface: Triac/ELV, Push DIM
Input Voltage: 220-240Vac
Power Factor:  PF>0.98/230Vac (at full load)
Efficiency: 90%
Fluctuation Level: High frequency exemption level.
Output Voltage: 12Vdc
Output Current: Max. 12.5A
Output Power: 0~150W
Dimming Range: 0~100%, dimming down to 0.1%
Certification: CCC,TUV,CE,KC,RCM,CB,EAC,ENEC,UKCA,ROHS
Warranty: 5 years



LM-150-24-G1T2F

Rubycon capacitor
Dimming Interface: Triac/ELV, Push DIM
Input Voltage: 220-240Vac
Power Factor:  PF>0.98/230Vac (at full load)
Efficiency: 91%
Fluctuation Level: High frequency exemption level.
Output Voltage: 24Vdc
Output Current: Max. 6.25A
Output Power: 0~150W
Dimming Range: 0~100%, dimming down to 0.1%
Certification: CCC,TUV,CE,KC,RCM,CB,EAC,ENEC,UKCA,ROHS
Warranty: 5 years
