[China] LTECH Constant Voltage LED Driver 0/1-10V Series

[China] LTECH Constant Voltage LED Driver 0/1-10V Series

SKU 2831800

$ 80.00 SGD
$ 80.00 SGD $ 80.00 SGD
ลดราคา ขายหมดแล้ว
ค่าจัดส่งที่คำนวณในขั้นตอนการชำระเงิน
Power
Voltage

Request For Quote

***Ships from China - 2 to 3 weeks lead time***

Technical Details:

Data Sheet for LM-75-12-G2A2/LM-75-24-G2A2/LM-100-24-G2A2

Data Sheet for LM-150-12-G2A2/LM-150-24-G2A2

Product Details

LM-75-12-G2A2

General Product Type Constant Voltage Driver
  Length (mm) 292
  Width (mm) 43
  Height (mm) 30
  Housing Color White
  Housing Material Plastic
  Mounting Surface mounted
  Weight (g) 300
Electronics Input Domain AC
  Input Voltage 220 ~ 240V AC
  Output Voltage 12V DC
  Output Current Max. (A) 6.25
  Output Power Range (W) 0~75
  Output Power (W) 75W @ 12V
  Power Factor at Full Load +0.97 @ 230VAC
  Power Supply Internal
  Anti Surge L-N: 2kV
  Efficiency 92%
  Leakage current max. (mA) 0.5
  Standby Power Loss Max. (W) 0.5
  Input Frequency 50 ~ 60Hz
  Inrush Current 30A @ 230VAC
Lighting Color Range Tunable White
Control Output Signal PWM-CV
  Control 0-10V
  Dimming Range 0~100%
  Number of Channels 2
Protection Protection Class II
Environmental Operating Temperature -20 ~ +50 °C
  Ingress Protection IP20
  Environment Indoor
Approvals CE √
Weight & Dimensions W x H x D (cm) 29.60 x 4.40 x 3.30
  Weight (kg) 0.30

LM-150-12-G2A2
General Product Type Constant Voltage Driver
  Length (mm) 352
  Width (mm) 43
  Height (mm) 30
  Housing Color White
  Housing Material Plastic
  Mounting Surface mounted
  Weight (g) 435
Electronics Input Domain AC
  Input Voltage 220 ~ 240V AC
  Input Current max (A) 0.75A @ 230V AC
  Output Voltage 12V DC
  Output Current (mA) max/output 12500
  Output Current Max. (A) 12.5
  Output Power Range (W) 0~150
  Power Factor at Full Load +0.98 @ 230VAC
  Power Supply External (not included)
  LED Outputs 2
  Anti Surge L-N: 2kV
  Efficiency 92%
  Leakage current max. (mA) 0.5
  Standby Power Loss Max. (W) 0.5
  THD (at full load) 6% @ 230V AC
  Input Frequency 50 ~ 60Hz
  Inrush Current 45A @ 230VAC
Lighting Color Range Tunable White
Control Output Signal PWM-CV
  Control 0-10V
  Dimming Range 0~100%
  Number of Channels 2
Protection Protection Class II
Environmental Storage Temperature -40 ~ +80 °C
  Operating Temperature -20 ~ +50 °C
  Ingress Protection IP20
  Safety Standards NEN-EN-IEC 61347-1, NEN-EN-IEC 61347-2-13
  Environment Indoor
Approvals CE √
  RoHS √
Weight & Dimensions W x H x D (cm) 35.50 x 4.40 x 3.30
  Weight (kg) 0.43

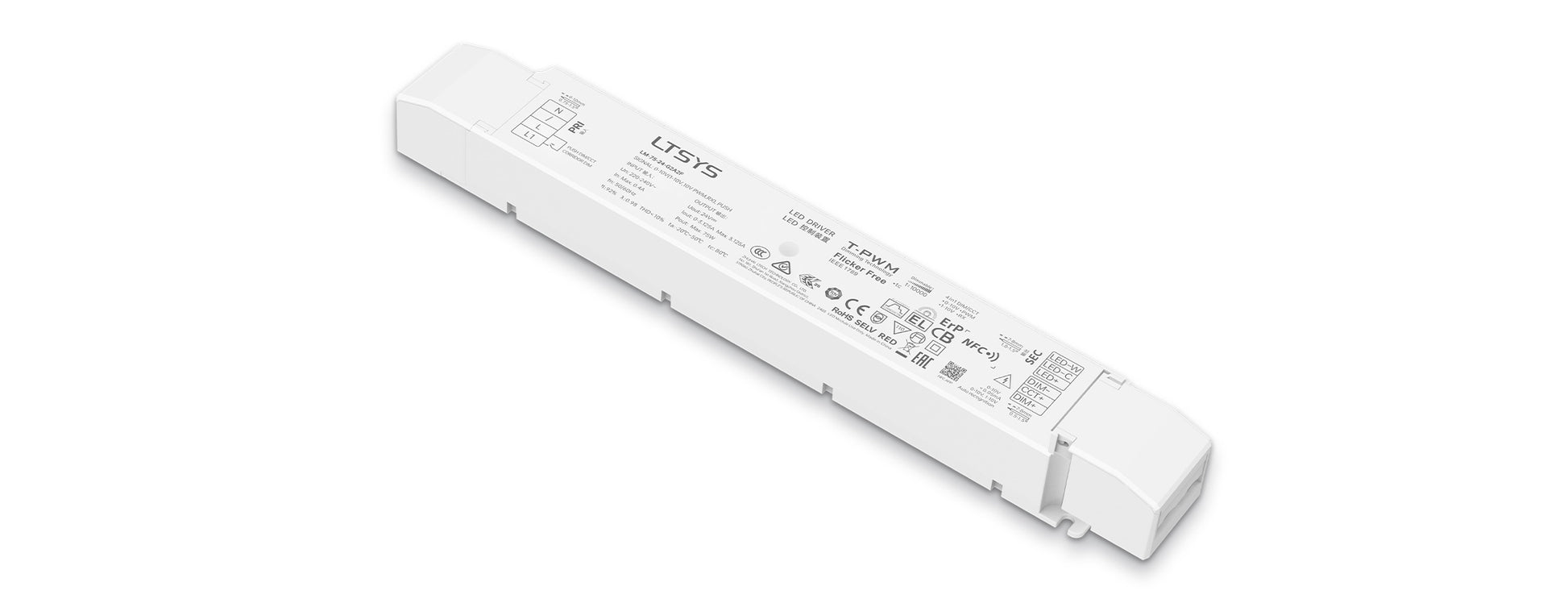

LM-75-24-G2A2
General Product Type Constant Voltage Driver
  Length (mm) 292
  Width (mm) 43
  Height (mm) 30
  Housing Color White
  Housing Material Plastic
  Mounting Surface mounted
  Weight (g) 300
Electronics Input Domain AC
  Input Voltage 220 ~ 240V AC
  Output Voltage 24V DC
  Output Current Max. (A) 3.125
  Output Power Range (W) 0~75
  Output Power (W) 75W @ 24V
  Power Factor at Full Load +0.97 @ 230VAC
  Power Supply Internal
  Anti Surge L-N: 2kV
  Efficiency 92%
  Leakage current max. (mA) 0.5
  Standby Power Loss Max. (W) 0.5
  Input Frequency 50 ~ 60Hz
  Inrush Current 30A @ 230VAC
Lighting Color Range Tunable White
Control Output Signal PWM-CV
  Control 0-10V
  Push Dim yes
  Dimming Range 0~100%
  Number of Channels 2
Protection Protection Class II
Environmental Operating Temperature -20 ~ +50 °C
  Ingress Protection IP20
  Environment Indoor
Approvals CE √
Weight & Dimensions W x H x D (cm) 29.60 x 4.40 x 3.30
  Weight (kg) 0.30

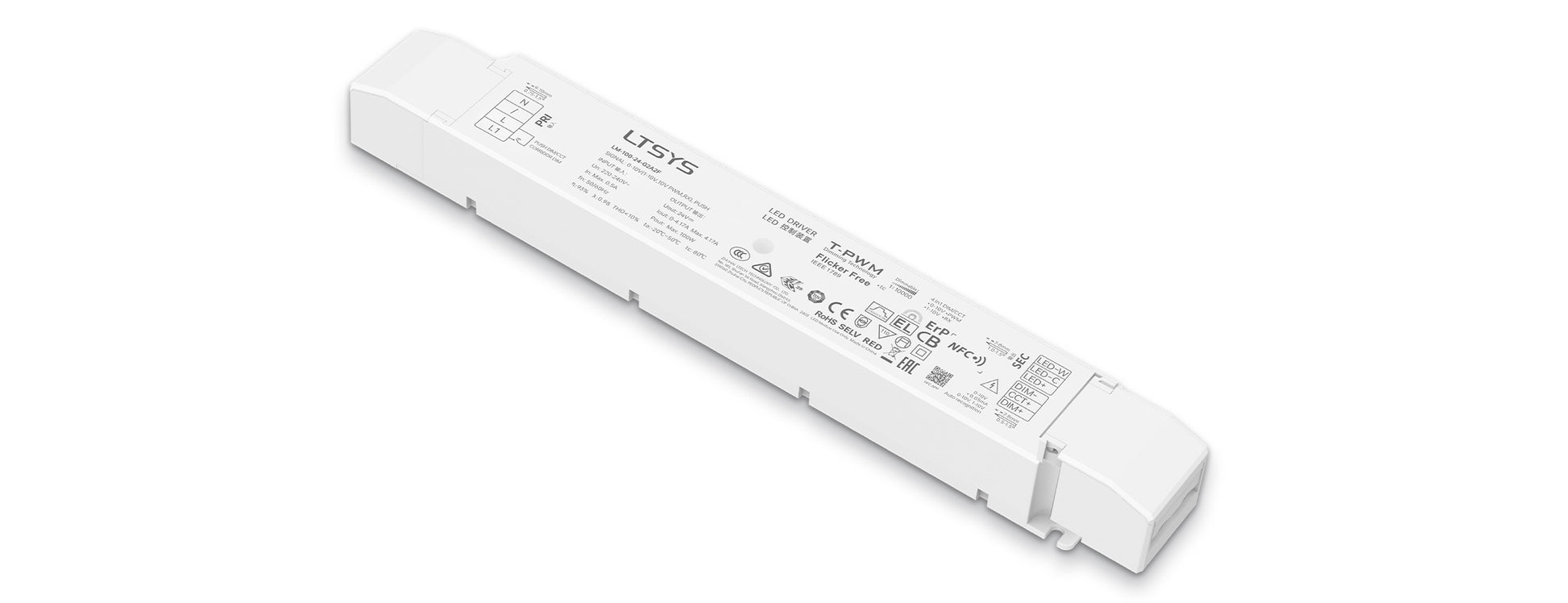

LM-100-24-G2A2

General Product Type Constant Voltage Driver
  Length (mm) 292
  Width (mm) 43
  Height (mm) 30
  Housing Color White
  Housing Material Plastic
  Mounting Surface mounted
  Weight (g) 300
Electronics Input Domain AC
  Input Voltage 220 ~ 240V AC
  Output Voltage 24V DC
  Output Current Max. (A) 4.17
  Output Power Range (W) 0~100
  Output Power (W) 100W @ 24V
  Power Factor at Full Load +0.98 @ 230VAC
  Power Supply Internal
  Anti Surge L-N: 2kV
  Efficiency 93%
  Leakage current max. (mA) 0.5
  Standby Power Loss Max. (W) 0.5
  Input Frequency 50 ~ 60Hz
  Inrush Current 45A @ 230VAC
Lighting Color Range Tunable White
Control Output Signal PWM-CV
  Control 0-10V
  Push Dim yes
  Dimming Range 0~100%
  Number of Channels 2
Protection Protection Class II
Environmental Operating Temperature -20 ~ +50 °C
  Ingress Protection IP20
  Environment Indoor
Approvals CE √
Weight & Dimensions W x H x D (cm) 29.60 x 4.40 x 3.30
  Weight (kg) 0.30

LM-150-24-G2A2

General Product Type Constant Voltage Driver
  Length (mm) 352
  Width (mm) 43
  Height (mm) 30
  Housing Color White
  Housing Material Plastic
  Mounting Surface mounted
  Weight (g) 435
Electronics Input Domain AC
  Input Voltage 220 ~ 240V AC
  Input Current max (A) 0.75A @ 230V AC
  Output Voltage 24V DC
  Output Current (mA) max/output 6250
  Output Current Max. (A) 6.25
  Output Power Range (W) 0~150
  Power Factor at Full Load +0.98 @ 230VAC
  Power Supply External (not included)
  LED Outputs 2
  Anti Surge L-N: 2kV
  Efficiency 93%
  Leakage current max. (mA) 0.5
  Standby Power Loss Max. (W) 0.5
  THD (at full load) 6% @ 230V AC
  Input Frequency 50 ~ 60Hz
  Inrush Current 45A @ 230VAC
Lighting Color Range Tunable White
Control Output Signal PWM-CV
  Control 0-10V
  Dimming Range 0~100%
  Number of Channels 2
Protection Protection Class II
Environmental Storage Temperature -40 ~ +80 °C
  Operating Temperature -20 ~ +50 °C
  Ingress Protection IP20
  Safety Standards NEN-EN-IEC 61347-1, NEN-EN-IEC 61347-2-13
  Environment Indoor
Approvals CE √
  RoHS √
Weight & Dimensions W x H x D (cm) 35.50 x 4.40 x 3.30
  Weight (kg) 0.43
