S22

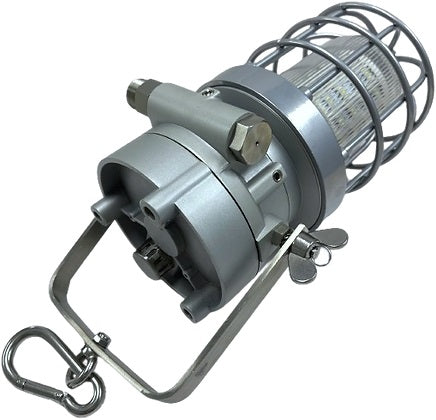

Centurion ATEX Explosion Proof Air Turbo Light
Centurion ATEX Explosion Proof Air Turbo Light
SKU SKU:330621
แบ่งปัน
Technical Details:
Description:
The ATEX Explosion Proof Air Turbo Pendant Light ALED-100P and The ATEX Air Turbo Light BAL-1200 are high-power compressed air-driven lights commonly used in potentially explosive atmospheres while featuring aluminum ultra-light construction.
It provides illumination for shot-blasting, cleaning, and coating storage tanks, vessels, pipelines, and structural engineering activities, offering a safer alternative to mains and low voltage lighting as the explosive atmospheres pose a severe risk to the workforce.
The ATEX Explosion Proof Air Turbo Pendant Light ALED-100P uses high-efficiency 40W LED light, offering brilliant cool white output while the ATEX Air Turbo Light BAL-1200 uses a 250 watts Halogen lamp output, offering brilliant warm white output. Both are high reliability, low maintenance light sources that provide high-quality ambient lighting.
Variant Details:
Inv code |
330621/CEN |
330638/CEN |
Model |
ALED-100P |
BAL-1200 |
Beam type |
Bay light |
Bay light |
Color temperature |
6,000K |
3,200K |
Output |
2,200 lumens (effective lumens) |
7,500 lumens (effective lumens) |
Light source type |
High power LED |
Halogen lamp |
Power |
12V 40W |
24V 250W |
Common usage area |
Oil and petrochemicals industries |
Oil and petrochemicals industries |
Working pressure |
3.5 – 8.0 Bar |
4.0 – 8.0 Bar |
Enclosure |
Impact resistant thermoplastic, anti-static |
Impact resistant thermoplastic, anti-static |
Ex Mark |
II 2G Ex eb pxb IIC T6 Gb II 2D Ex tb IIIC T85°C Db |
II 2G Ex eb pxb IIC T6 Gb II 2D Ex tb IIIC T85°C Db |
Type of protection |
‘eb’ Increased safety, ‘pxb’ Pressurized, 'tb' Dust ignition protection by enclosure |
‘eb’ Increased safety, ‘pxb’ Pressurized, 'tb' Dust ignition protection by enclosure |
Areas of classification (Gases) |
Zone 1 and 2. Gas Groups: IIA, IIB, and IIC |
Zone 1 and 2, Gas Groups: IIA, IIB, and IIC |
Areas of classification (Dusts) |
Zone 21 and 22. Dust Groups: IIIA, IIIB, and IIIC |
Zone 21 and 22, Dust Groups: IIIA, IIIB, and IIIC |
Temperature classification (Gases / Dusts) |
T6 / 85°C |
T6 / 85°C |
Inlet air supply hose |
Anti-static hose, inner diameter Φ1/2"(12mm) |
Anti-static hose, inner diameter Φ1/2" |
Product weight |
8.8kg |
6.0kg |
Dimension |
Φ165mm x 351mm |
Φ152mm x 295mm |
Packaging |
1 piece per carton, size 435mm x 300mm x 300mm |
1 piece per carton, size 340mm x 340mm x 280mm |
