Baomain Solar PV Fuses, gPV Type Fuse Link BMPV Series CE Photovoltaic Fuses

Description:

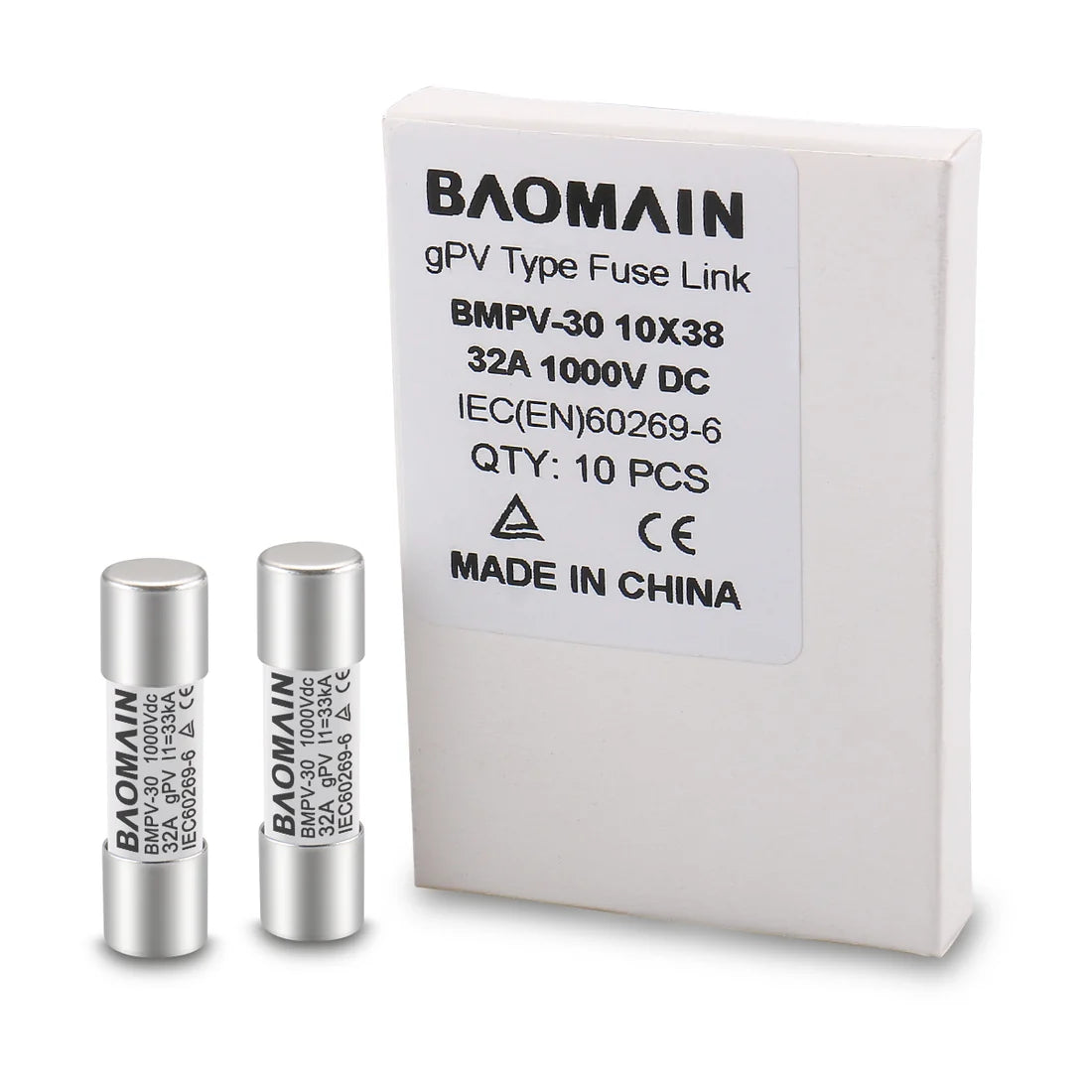

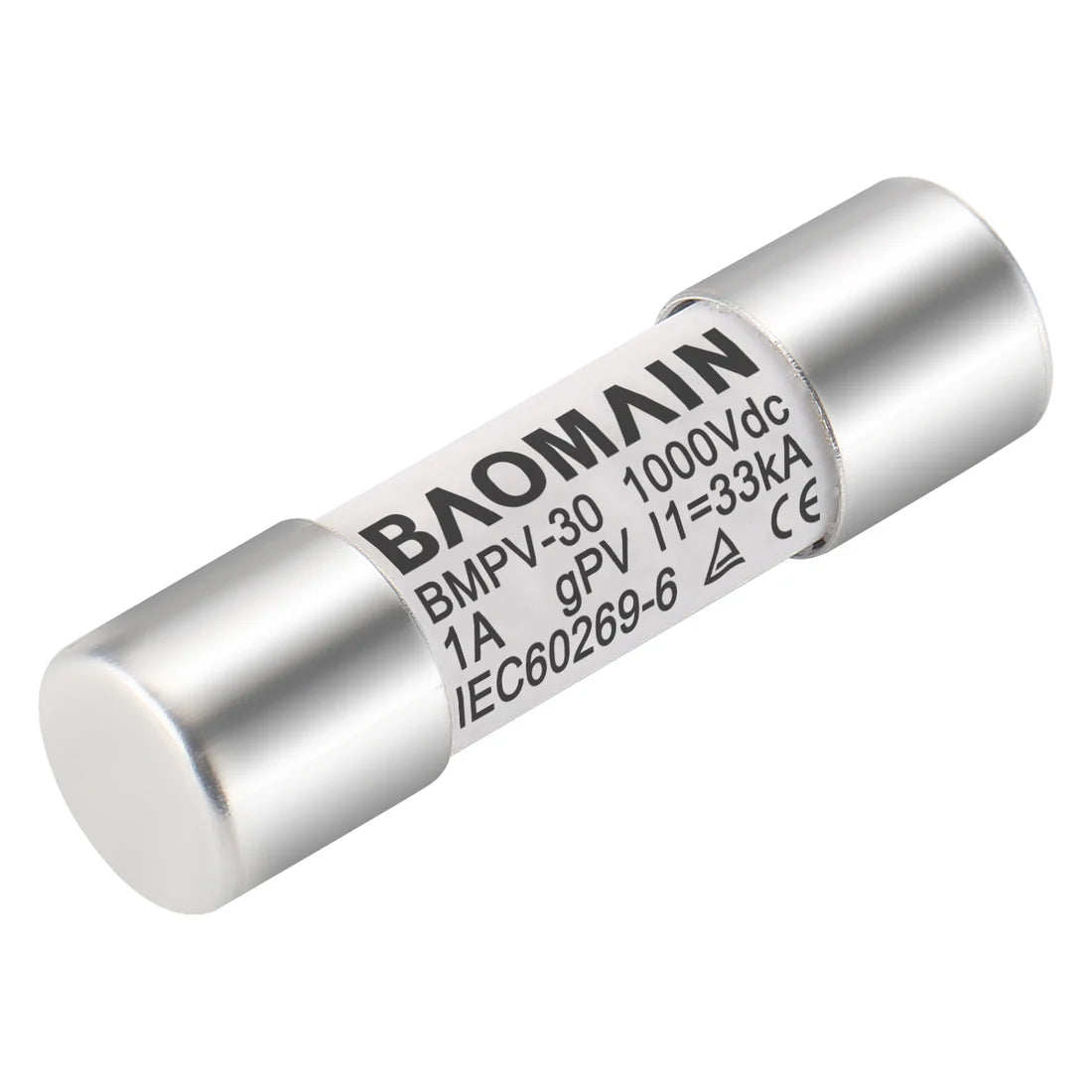

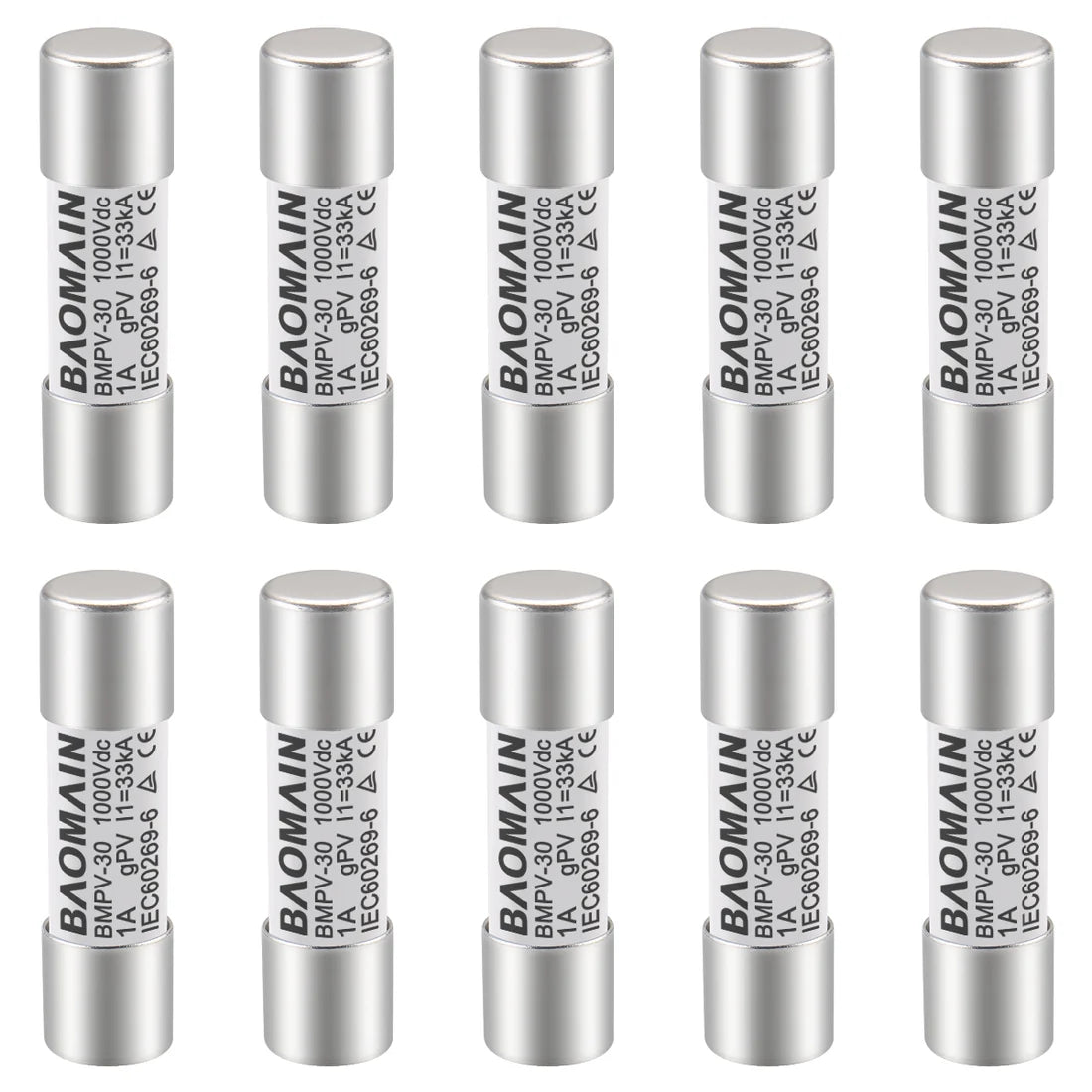

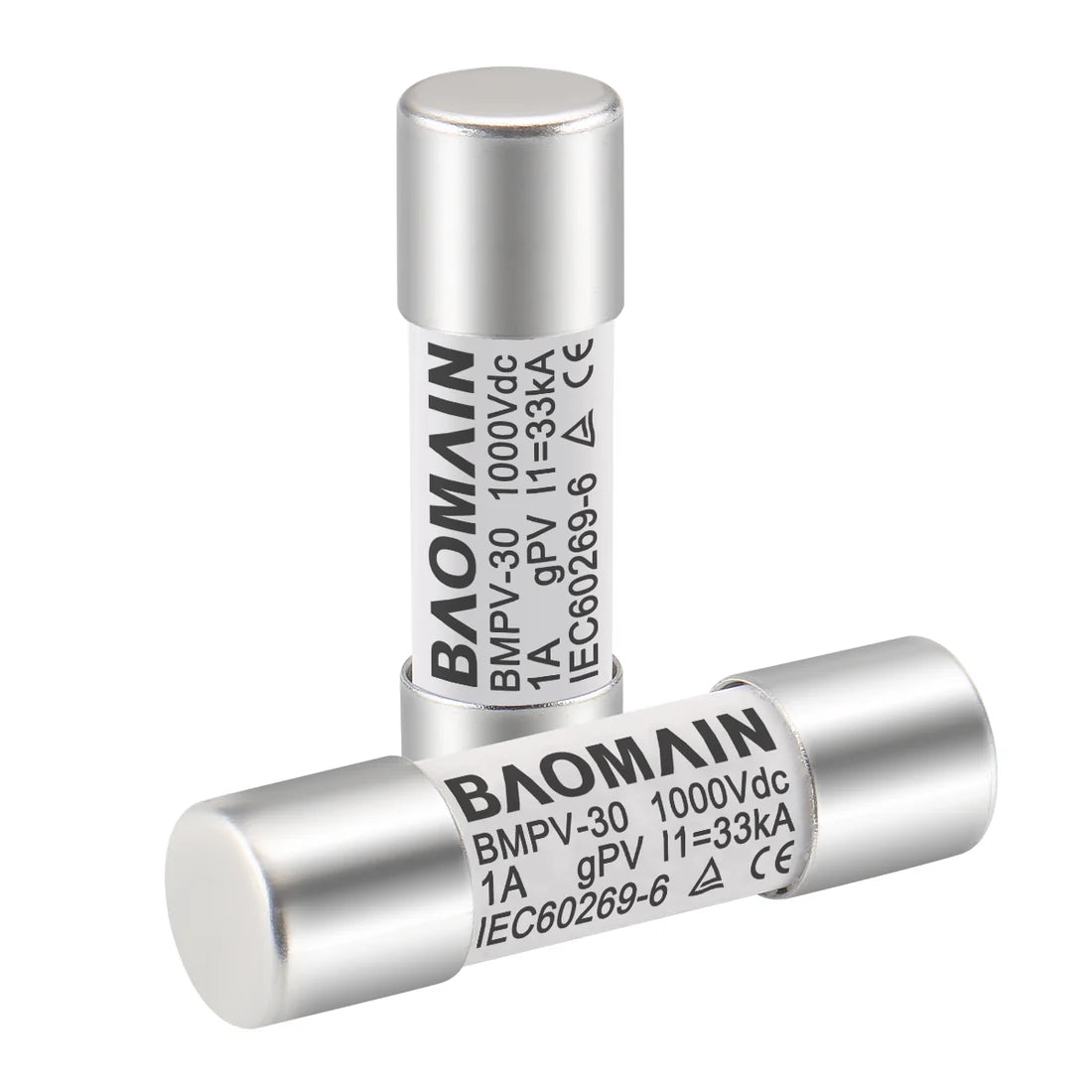

Model: BMPV-30

• Model : PV-30L

• Type: Fast Blow
• Shape: Cylindrincal
• Rated Voltage : 1000 VDC

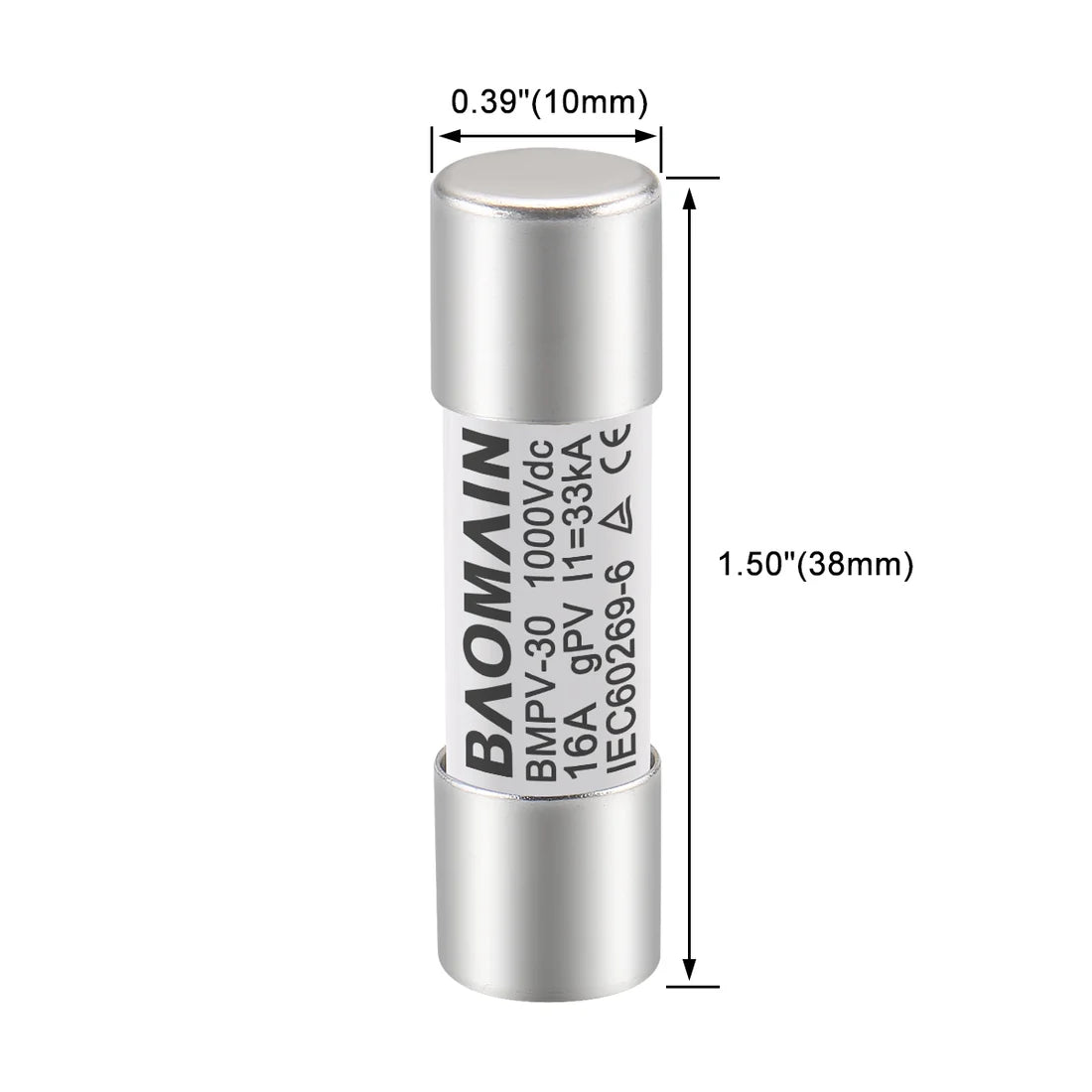

• Size : 10 x 38mm/ 0.39" x 1.5" (D*L)
• Package Content :  Ceramic Fuses
• Breaking Capacity: I1=33kA
• Watts Loss(w): ≤4
• Standard: IEC60269-6,GB/T13539.6,CE listed

• With forced arc extinguishing characteristics
• Against damage due to over-load and short circuit current.
• Cylindrical fuse link with cylindrical contact caps is designed for protecting electrical distributing with rated current up to according Amp.

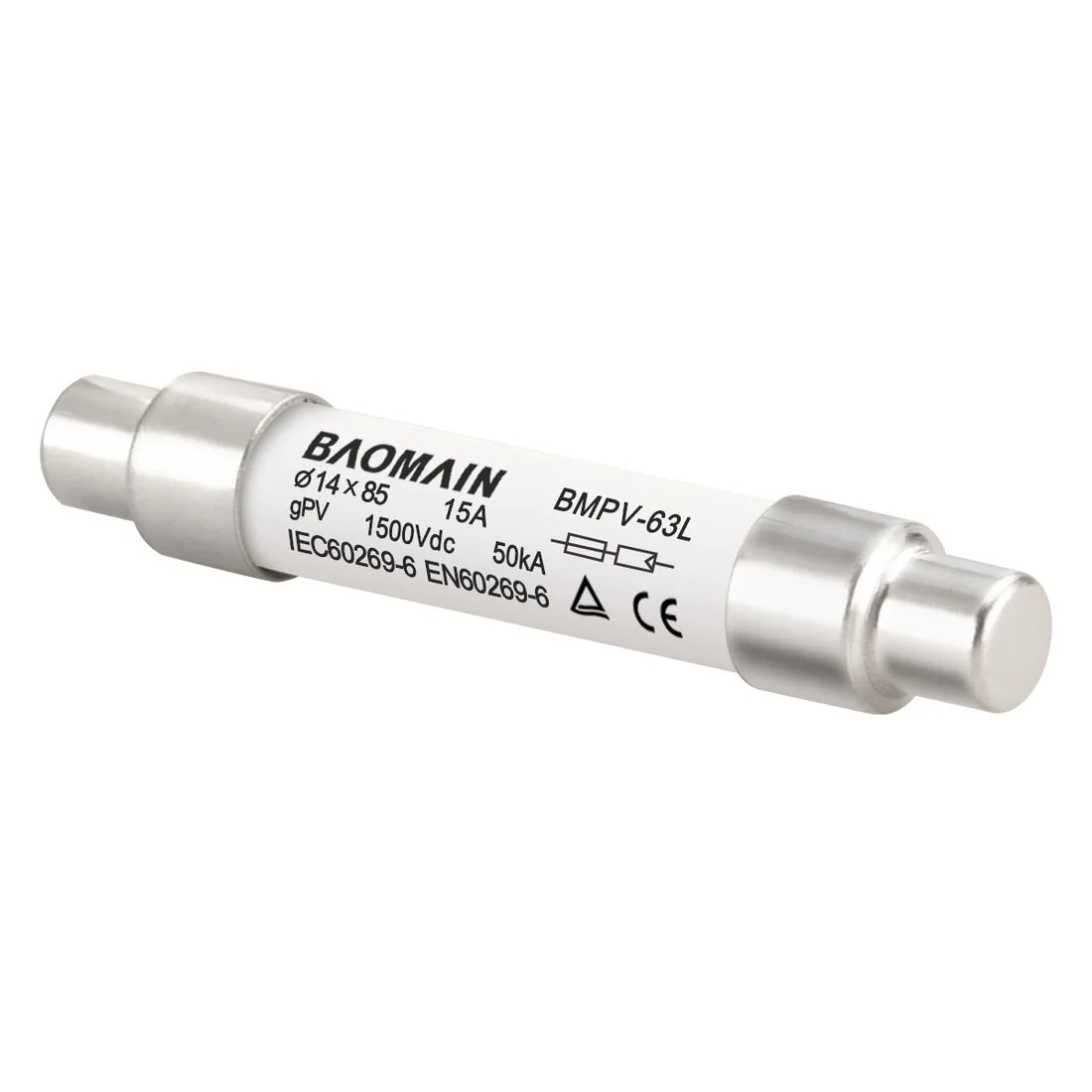

Model: BMPV-63L

• Model : BMPV-63L

• Type: Fast Blow
• Shape: Cylindrincal
• Rated Voltage : 1500 VDC

• Size : 14 x 85mm/ 0.55" x 3.35" (D*L)
• Package Content :  Ceramic Fuses
• Breaking Capacity: I1=50kA
• Watts Loss(w): ≤12
• Standard: IEC60269-6,GB/T13539.6,CE listed
• Package Content : 5 x Solar PV Fuses


• With forced arc extinguishing characteristics
• Against damage due to over-load and short circuit current.
• Cylindrical fuse link with cylindrical contact caps is designed for protecting electrical distributing with rated current up to according Amp.
