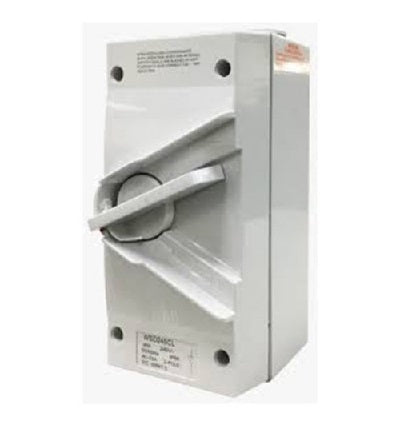

ABB WSD463CL IP66 Weatherpoof Isolator 63A 4Pole

Description:

Weatherproof Switched Isolator IP66

Range features:
• Degree of protection IP66 prevents dust and powerful
water jets
• Complies to outdoor applications
• Enclosure made of high quality PC materials and high
temperature insulation
• Resistance to Ultra Violet (UV) radiation and
anti-corrosion
Isolator:
• High reliability with 4500 A rated short-circuit
making capacity for isolators
• Complete accessories for easy installation

Technical Specification:

Standard Specifications : IEC 60947-3 (Third Edition) + A1:2012 + A2:2015
Number of poles : 2P & 4P
Rated operational current : 20 A, 32 A, 45 A, 63 A
Rated operational voltage : 240 V/440 V
Rated insulation voltage : 630 V
Rated impulse withstand voltage : 2.5 KV 1.2/50 μs
Rated frequency : 50/60 Hz
Rated utilization : AC-23 A
Rated making capacity 3 Ie
Rated breaking capacity 3 Ie
Rated short-time withstadn current 15 Ie for 1 s
Rated short-circuit making capacity : 4500 A
Pollution degree 3
Degree of protection : IP66
