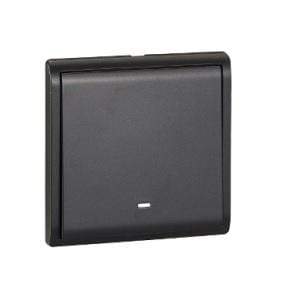

Schneider 16AX 250V 1 Gang 1 Way Switch with Fluorescent Locator

Name: Schneider 16AX 250V 1 Gang 1 Way Switch with Fluorescent Locator
Brand: S6
SKU: E8231L1F-1
Price: 23.0 SGD
Availability: InStock

SKU SKU:E8231L1F-1

$ 23.00 SGD

~~$ 25.00 SGD~~ $ 23.00 SGD

ลดราคา ขายหมดแล้ว

ค่าจัดส่งที่คำนวณในขั้นตอนการชำระเงิน

Type สวิตช์ 1 แก๊ง + 1 ทาง + ตัวระบุตำแหน่งเรืองแสง สวิตช์ 1 แก๊ง + 2 ทาง + ตัวระบุตำแหน่งเรืองแสง 1 Gang+1 Way Switch+Neon 1 Gang+Bell Press Switch+Fluorescent Locator 1 Gang+Intermediate Switch+Fluorescent Locator

Finish White เช่น ลาเวนเดอร์ซิลเวอร์ เอ็มบี WG WG-C5 White_G2

ตัวเลือกสินค้า

ปริมาณ

Request For Quote

**16AX 250V 1 Gang 1 Way Switch with Fluorescent Locator, White (E8231L1F_WE)**

**16AX 250V 1Gang 1way switched with Fluorescent Locator,White (E8231L1F_WE_G2)**

**16A 250V - 1 gang 1 way switch with fluorescent locator (AS)**

**16AX 250V 1 Gang 1 Way Switch with Fluorescent Locator, Lavender Silver**

**16A 250V - 1 gang 1 way switch with fluorescent locator (MB)**

**16A 250V - 1 gang 1 way switch with fluorescent locator (WG) (E8231L1F_WG)**

**16AX 250V 1Gang 1way switched with Fluorescent Locator,Wine Gold (E8231L1F_WG_C5)**

**16AX 250V 1 Gang 2 Way Switch with Fluorescent Locator, White**

**16A 250V - 1 gang 2 way switch with fluorescent locator (MB)**

**16AX 250V 1 Gang 1 Way Switch with Neon, White**

**16AX 250V 1 Gang 1 Way Switch with Neon, Lavendar Silver**

**10A 250V 1 Gang Bell Press Switch with Fluorescent Locator, White**

**16A 250V - 1 gang Intermediate switch with fluorescent locator (AS)**

**16A 250V - 1 gang Intermediate switch with fluorescent locator (MB)**

Main
range	Pieno
product or component type	Switch
switch application	Switch
load type	Resistive Fluorescent
cover frame colour tint	White

Complementary
device mounting	Surface Flush
wiring device mounting	Flush Surface
switch function	1-way
rated current	16 AX at 250 V AC 50 Hz
local signalling	Fluorescent (white)
number of gangs	1 gang
material	Polycarbonate: surround Polycarbonate: grid plate
connections - terminals	Pillar terminals
clamping connection capacity	2 x 1.5 mm² for stranded cable(s) 2 x 2.5 mm² for solid cable(s)
embedding depth	23 mm
width	87 mm
height	87 mm
depth	23 mm

Environment
ambient air temperature for operation	-5…40 °C
relative humidity	0…95 %
standards	SS 227-1 MS IEC 60669-1 GB 16915.1 IEC 60669-1 BS EN 60669-1

Offer Sustainability
Sustainable offer status	Green Premium product
REACh Regulation	REACh Declaration
REACh free of SVHC	Yes
EU RoHS Directive	Compliant EU RoHS Declaration
Mercury free	Yes
RoHS exemption information	Yes
China RoHS Regulation	China RoHS declaration Product out of China RoHS scope. Substance declaration for your information
Environmental Disclosure	Product Environmental Profile
