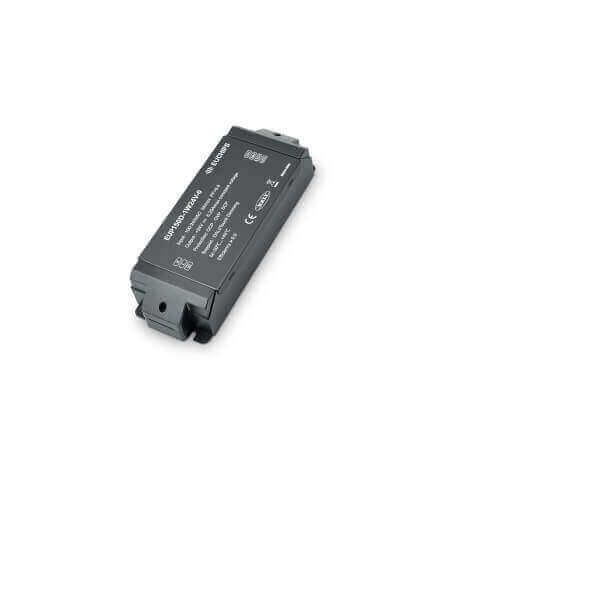

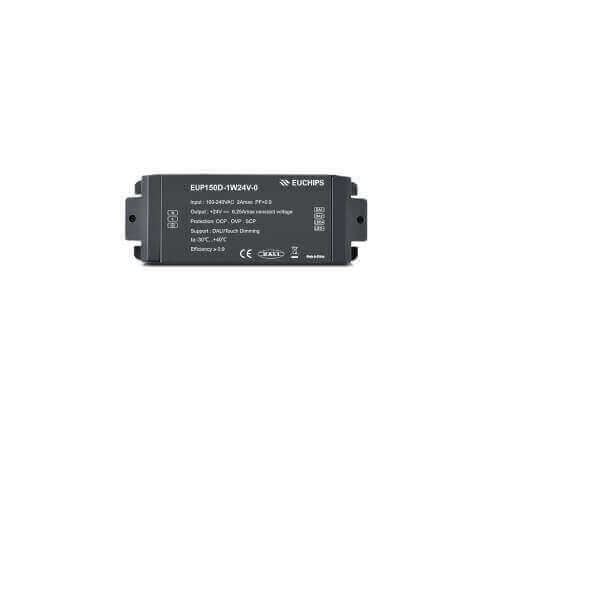

EUCHIPS EUP150D-1W24V-0 Series 150W 24VDC 6.25A*1ch CV DALI Driver
EUCHIPS EUP150D-1W24V-0 Series 150W 24VDC 6.25A*1ch CV DALI Driver
SKU SKU:102200041101
ราคาปกติ
$ 80.80 SGD
ราคาปกติ
$ 80.80 SGD
ราคาโปรโมชัน
$ 80.80 SGD
ราคาต่อหน่วย
/
ต่อ
ค่าจัดส่งที่คำนวณในขั้นตอนการชำระเงิน
ไม่สามารถโหลดความพร้อมในการรับสินค้าด้วยตนเองได้
แบ่งปัน
Technical Details:
- Model: EUP150D-1W24V-0
- Input voltage: 100-240VAC
- Output power: 150W
- Output Voltage: 24VDC
- Output current: 6.25A
- Output Channel:1
150W 24VDC 6.25A*1ch Constant Voltage DALI Driver EUP150D-1W24V-0
Feature
1. Signal channel constant voltage, 24VDC output
2. Meet DALI Protocol IEC62386
3. Wide range of input voltage 100VAC ~ 240VAC
4. Support Touch-DIM function
5. High efficiency up to 91%
6. Built-in active PFC function
7. Protections: Short circuit, Over current
8. IP 20 design
9. Suitable for indoor LED lighting application
Technical Parameter
| Model | EUP150D-1W24V-0 | |
| Input | Efficiency | 91%@230VAC,Full load |
| Voltage | 100VAC-240VAC | |
| Frequency Range(Hz) | 47/63Hz | |
| Power Factor | ≥0.95@115VAC,Full load | |
| THD(full load) | <10%@230VAC, Full load | |
| AC Current(max) | 0.5Amax@230VAC | |
| Inrush Current(max) | Cold start 40A@230VAC | |
| Output | Current(A)/Voltage (VDC) Power(W) | 6.25A/24VDC/150W |
| R & N (Max) | 70mVp-p | |
| Channel | 1 | |
| Current Tolerance | ±3% | |
| Turn on delay Time | <1.5s, at230Vac (When the light begins to shine) | |
| Function | Dimming Type | DALI Dimming / Touch DIM |
| Dimming Range | 1%-100% Dimming to off | |
| Protection | Short Circuit | Hiccup, recovers after fault condition is removed |
| Over current | Constant current limiting, recovers automatically after removed | |
| Safety& EMC |
Surge | L-N:1KV |
| Withstand Voltage | I/P-O/P: 3000VAC/1min/5mA | |
| DALI Standard | IEC 62386-101: 2014, IEC 62386-102: 2014; IEC 62386-207: 2009, DALI 1.0 | |
| Safety Standards | EN61347, GB19510 | |
| EMC Emission | EN50515, EN61000-3-2 | |
| EMC Immunity | EN61000-4-2, 3, 4, 5, 6, 8, 11; EN61547 | |
| Others | Working Temp. | -30℃~40℃ |
| Storage Temp., Humidity | -40℃~85℃, 20-90%RH | |
| tc | 90℃ | |
| Material | Metal | |
| IP Rating | IP20 | |
| Lifetime | 30,000h@tc:80℃ | |
| Warranty Condition | 3 years | |
| Switch Cycle | >15,000 times | |
| Packing(weight) | Net weight: 668g±5%/PCS; 18PCS/Carton;13kg±5%/Carton; Carton Size: 303*221*265mm(L*W*H) | |
| Dimension | 206*75*41mm（L*W*H） | |
