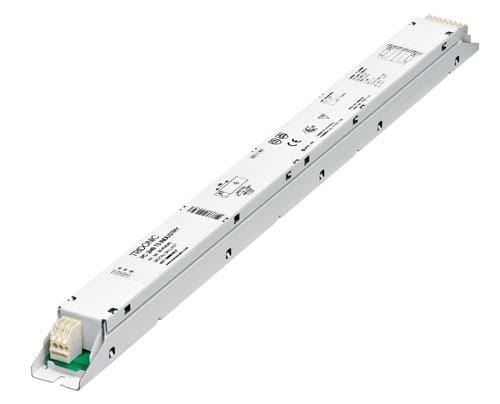

TRIDONIC PC 2x36 T8 INDUSTRY 220-240V 50/60Hz Ballast x5PCs
TRIDONIC PC 2x36 T8 INDUSTRY 220-240V 50/60Hz Ballast x5PCs
SKU SKU:89800453
Regular price
$246.00 USD
Regular price
$345.00 USD
Sale price
$246.00 USD
Unit price
/
per
Shipping calculated at checkout.
Low stock: 5 left
Couldn't load pickup availability
Share
Product description
- CELMA Energy Efficiency Index A2
- T5: Nominal life-time up to 200,000 h (at ta 50 °C with a failure rate ≤ 0.05 % per 1,000 h)
- T8: Average life = 100,000 hours (at max ta. -10 °C and a failure rate of ≤ 0.1 % per 1,000 hours). Average life = 50,000 hours (at max ta. with a failure rate of ≤ 0.2% per 1,000 hours)
- Large temperature range (for values see table)
- Suitable for mains voltage peaks (burst/surge) up to 4 kV
- Constant luminous flux irrespective of fluctuations in mains voltage
- For luminaires of protection class I and protection class II
- Automatic start after replacement of defective lamps
- Safety shutdown of defective lamps and at end of lamp life
- Insulation Displacement Connection (IDC) terminal for rapid automatic or manual wiring
- For emergency lighting systems as per EN 50172
- For luminaires with M and MM as per EN 60598, VDE 0710 and VDE 0711
- Temperature protection as per EN 61347-2-3 C5e
- 8-year guarantee
Tridonic PC 2x36 T8 INDUSTRY 220-240V 50/60Hz | |
Technical Details: | |
Mains voltage range | 220 – 240 V |
AC voltage range | 198 – 264 V |
DC voltage range | 176 – 280 V (Lamp start ≥ 198 V DC) |
Mains frequency | 0 / 50 / 60 Hz |
Overvoltage protection | 320 V AC, 1 h |
Defined warm start | ≤ 15 s |
Operating frequency | ≥ 40 kHz |
Type of protection | IP20 |
Lamp Wattage | 2x36 W |
Lamp Type | T26(T8) |
Type | PC 2/36 T8 INDUSTRY |
Article No | 89800453 |
Dimensions(LxWxH) | 456x30x28 mm |
Hole spacing D | 445 mm |
Lamp Power | 64.0 W |
Circuit Power | 74.5 W |
EEI | A2 |
Current at 50 Hz (220V/240 V) | 0.35 A / 0.32 A |
λ at 50Hz (220 V/ 240 V) | 0.97 / 0.97 |
tc point max | 82 °C |
Ambient temperatur ta | -30 ... +70 °C |
weight per pc | 0.428 kg |
