Name: SIMES- PLAFONIERE ROUND/OVAL (IP54) Also available with ring only(less guard) |
Brand: C7
SKU: S18G
Price: 42.0 USD
Availability: InStock

Product Details:

MODULES

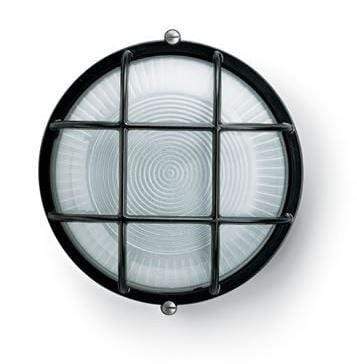

PLAFONIERE ROUND

S18/G-4W LED

Length 180mm

S20/G-6W LED

Length 240mm

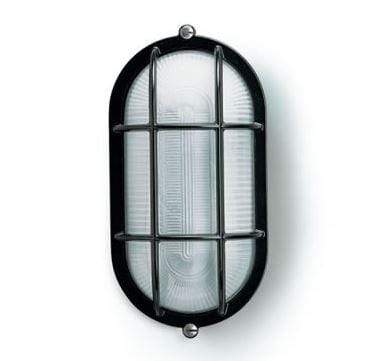

PLAFONIERE OVAL

S14/G-4W LED

Length 210mm

S16/G-6W LED

Length 280mm

PRODUCT INFORMATION

LUMINAIRE TYPE

Wall mounted luminaire.

IP rating IP 54

MATERIAL CHARACTERISTICS
Aluminium die cast housing in EN AB-47100 (low copper content) with high resistance against corrosion. Stone wash surface treatment prior to painting process. A4 grade Stainless Steel screws with 2,5-3% molybdenum content which increases the resistance againstcorrosion. EPDM gaskets. Painting Process : 3 Step Process

1) Surface treatment with BONDERITE. A heavy metal free chemical surface treatment containing ceramic nano particles giving a cohesive, inorganic and highly dense protective coating.

2) PRE POLYMERIZATION a process of introducing an epoxy primer with excellent characteristics to the paint which also offers very high resistance to oxidation due to its Zinc content.

3) POLYMERIZATION a process with the application of polyester powder with high resistance against UV rays and harsh weather conditions. Resistance test protection for Marine applications for 1200h. Mechanical resistance IK 06

LIGHTING PERFORMANCE
Sand blasted glass diffuser. Lamp fixed position. LOR --

WIRING
Available colours: White (cod.01), Black (cod.09).
L.E.D circuit included.

This luminaire contains built-in LED modules with energy class: .

LED circuit boards are engineered accordingly to actual Lumen Maintenance regulation (LM80).

Lifecycle refers to LED circuit boards only, all others components of the luminaire are excluded.
